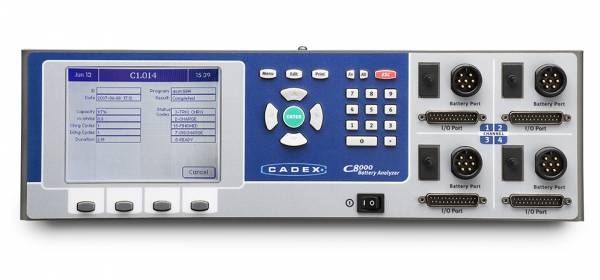

C8000 Battery Testing System

CADEX

The Cadex C8000 delivers the versatility needed to ensure you get the right performance from the batteries used in your applications. The C8000 is a multi-purpose tool that allows you to optimize batteries at every stage of product life.

Download Catalog

C8000 BATTERY TESTING SYSTEM. AFFORDABLE LAB-GRADE ACCURACY AND POWER.

WHETHER VALIDATING CUTTING EDGE LITHIUM BATTERY RESEARCH OR QUANITFYING THE ENERGY NEEDS OF A NEW BATTERY-POWERED IOT DEVICE, THE C8000 MAY BE THE MOST COMPLETE BATTERY TESTING SYSTEM AVAILABLE.

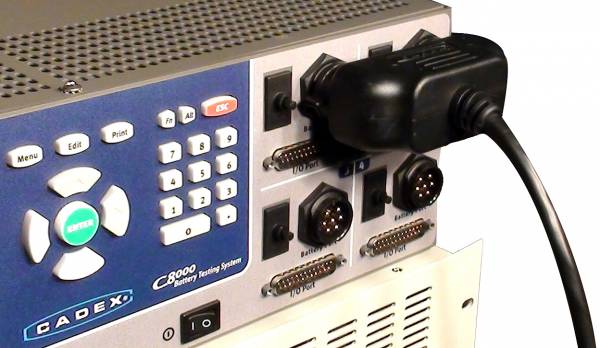

The Cadex C8000 stands in a class by itself in flexibility and affordable price. Test SMBus batteries, monitor cell balance and capture load signatures to observe batteries with a unique load protocol. Add a thermal chamber, an external load bank, a safety circuit and alarm to form a command center and you begin realizing the unique qualities of this fine battery testing system.

  • 4 independent digital drivers for maximum flexibility
  • 1.2V – 36V, 10A charge and discharge per channel
  • 100W per channel on charge; 80W on single channel discharge, 160W dual channel, and 2400W with external load bank

FEATURES

Digital technology widens the test range, provides ultimate stability and gets more power into a compact housing than is possible with analog devices. Each channel can be programmed with up to 10A charge and discharge current each. Power handling is 100W per channel on charge and 80W on discharge, or 400W on charge and 320W on discharge on all four channels.

The Cadex C8000 is more than a programmable power supply and load bank; the instrument has intelligence to assist in safe battery testing. Protected charge and discharge algorithms with redundant safety features identify a faulty battery and safely terminate the service should an anomaly occur. The system can be overridden for destructive tests.
