Battery Analyzers C7200, C7400, C7400ER

CADEX

The Cadex C7000 Series battery analyzers offer a platform that fulfills virtually all battery testing and conditioning needs. With features such as QuickSort™ that checks lithium-ion batteries in 30 seconds, and Boost that revives dead packs, the C7000 truly masters battery testing.

Download Catalog

C7200, C7400, & C7400ER PROFESSIONAL BATTERY ANALYZERS FOR LITHIUM, NICKEL, AND LEAD ACID BATTERIES

MAXIMIZE UPTIME OF CRITICAL EQUIPMENT WHILE MINIMIZING BATTERY FLEET COST

The Cadex C7000 Series of battery analyzers service lithium, nickel, and lead acid batteries on the same device with a simple change of adapter. Simply slide the battery into one of the 3,200 custom Battery Adapters or chose from one of 4 Universal Adapters and discover why the C7000 Series Battery Analyzers have become the world’s leading battery analyzers.

With features such as Boost to awaken sleeping Li-ion batteries and custom programs to prepare Li-ion for shipment, the C7000 analyzers masters battery testing to its fullest. Use the analyzer to measure capacity, spot check spare capacity after a long day and apply calibration to improve fuel gauge readings.

  • Over 3,200 custom SnapLock™ Battery Adapters
  • 18 programs provide automated battery testing
  • QuickSort™ tests lithium-ion batteries in 30 seconds
  • Boost™ restores sleeping Li-ion batteries to full life
  • Operates as standalone or with BatteryShop™ software



C7200 BATTERY ANALYZER (40 WATTS)

The two-station Cadex C7200 suits smaller organizations and storefront operations; 40 watts of charge power at 4 amps per station ensures quick service of larger batteries. This cost-effective analyzer offers similar features to the larger C7400.

  • Battery voltage range 1.2–16V nominal
  • Charge/discharge current up to 4A per station
  • Maximum charge power 40 watts per station
  • Maximum discharge power 35 watts

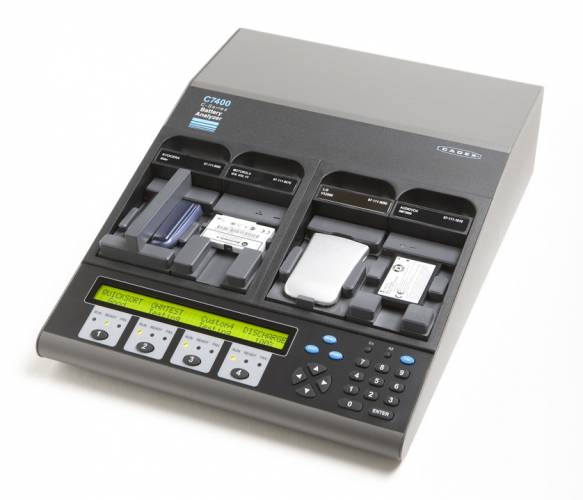

C7400 BATTERY ANALYZER (80 WATTS)

With four-stations and 80 watts of charge power, the Cadex C7400 is most economical in terms of cost per station. The added stations increase throughput and improve flexibility in accommodating batteries that require immediate service.

  • Battery voltage range 1.2–16V nominal
  • Charge/discharge current up to 4A per station
  • Maximum charge power 55 watts per station
  • Maximum discharge power 35 watts

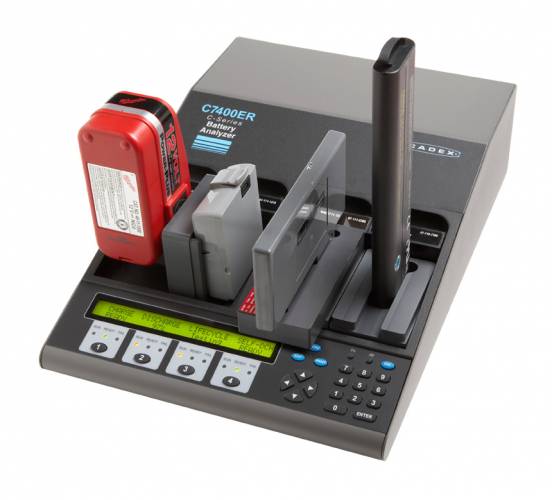

C7400ER BATTERY ANALYZER (170 WATTS)

The Cadex C7400ER is the most powerful of the C7000 Series battery analyzers. Six amps per station, service of 36 volt batteries and 170 watts of continuous power satisfies most service requirements.

  • Battery voltage range 1.2–36V nominal
  • Charge/discharge current up to 6A per station
  • Maximum charge power 75 watts per station
  • Maximum discharge power 75 watts
