Digital Multimeter DT4223, DT4224, DT4222, DT4221

HIOKI

Pocket DMM that Prevents False Circuit Breaker Trips using Proprietary Technology

Download Catalog Watch Video

The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level.

Key Features

• Achieving a high level of safety in a compact body and lightweight design

• Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input

• Robust design capable of withstanding a drop from a height of 1 m

• Test leads conveniently wrap around the back

• ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics

• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

• Broad -10 (14°F) to 65°C (149°F) operating temperature range

• Display backlight

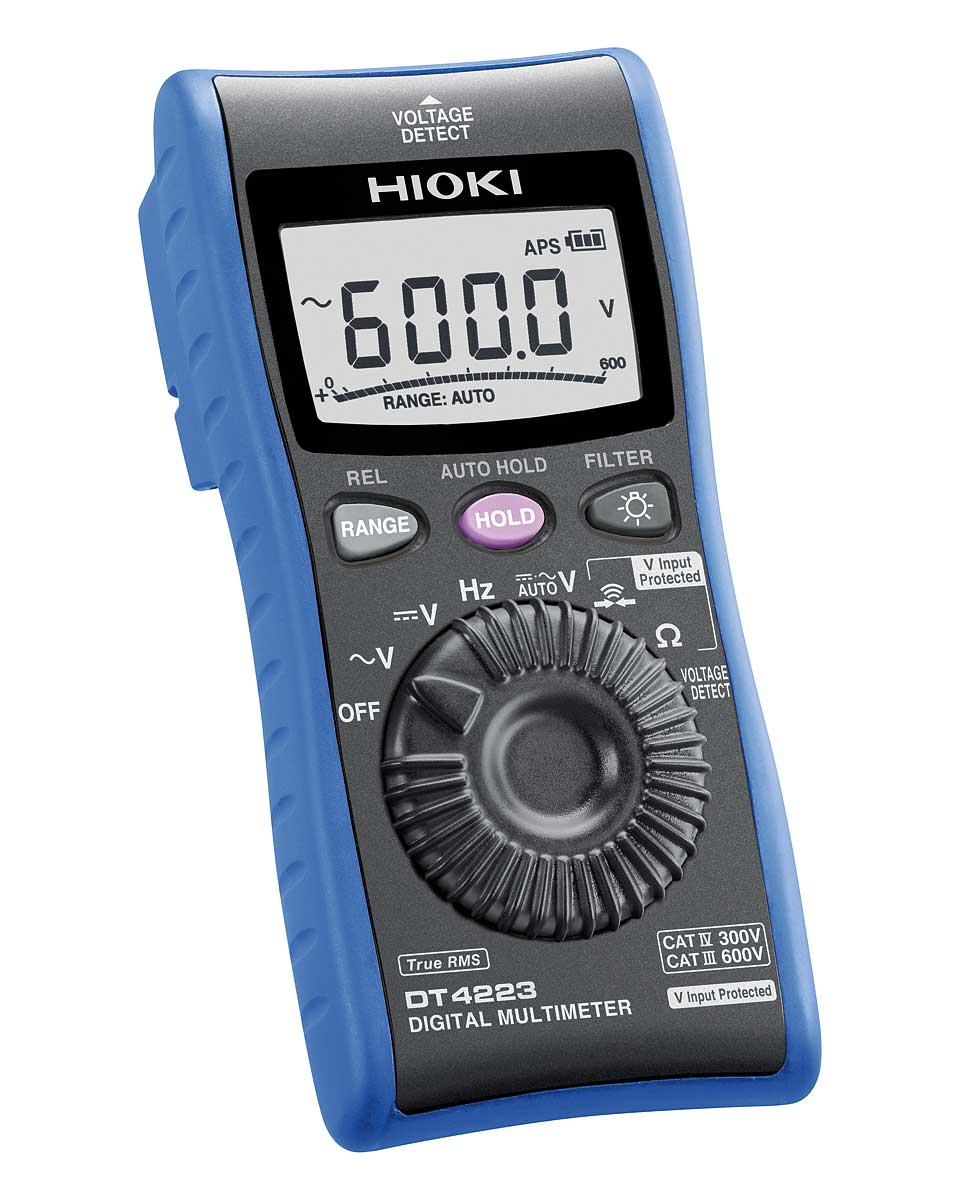

DIGITAL MULTIMETER DT4223

The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections. CAT IV 300 V, CAT III 600 V

• Resistance measurement and voltage detection function (DT4223)



DIGITAL MULTIMETER DT4224

The Hioki DT4224 is a pocket-sized digital multimeter featuring an innovative circuit-breaker false trip prevention function to enhance testing safety, capacitance and diode testing functions, ideal for all general electrical jobs. CAT IV 300 V, CAT III 600 V

• More convenient function: Resistance, Capacitance measurement and diode testing (DT4224)



DIGITAL MULTIMETER DT4222

The DT4222 is a pocket-sized digital multimeter designed specifically for general purpose testing, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth. CAT IV 300 V, CAT III 600 V

• Resistance, Capacitance measurement and diode testing (DT4222)



DIGITAL MULTIMETER DT4221

The DT4221 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and wide 40Hz to 1kHz AC V bandwidth.

• Resistance and diode testing functions omitted by design in pursuit of added safety (DT4221)

• Voltage detection function (DT4221)
