Features and Benefits

Portable AC Hipot for Apparatus Testing

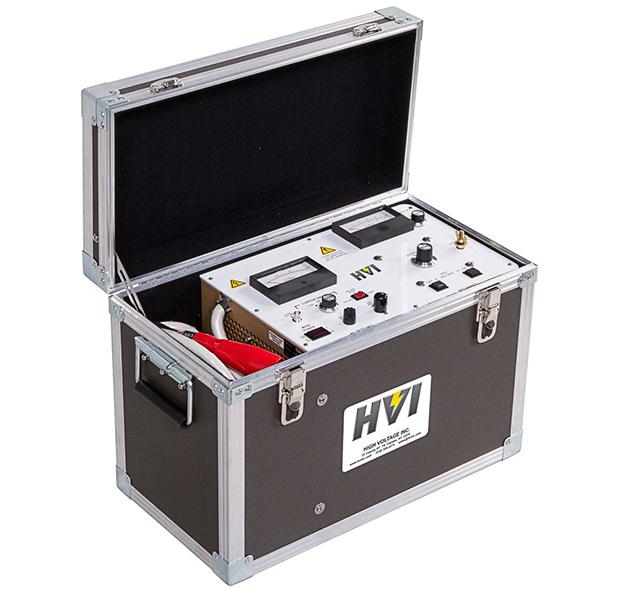

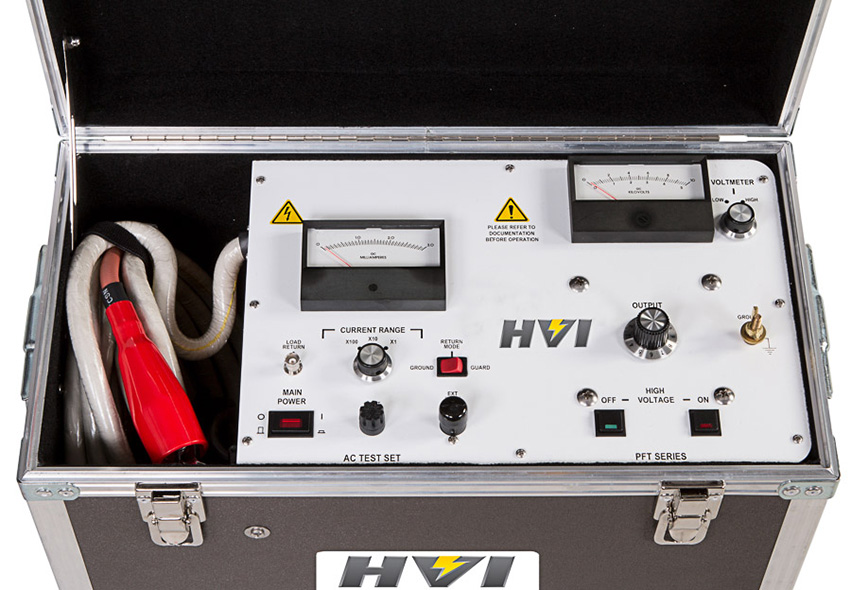

The PFT Series of portable AC hipot test sets are ideal for a variety of field and repair shop testing applications. These inexpensive, compact and light weight units are rugged and reliable. Our 3 kVA models feature capacitive load compensation enabling full load testing with a power draw of 1.5 kVA while operating from a conventional line input.* Models below 100 kVac are single piece units with a shielded cable output for fast and easy test setup. The PFT-103CM, PFT-303CM, PFT-503CM, and PFT-1003CM are compensated enabling testing of 3 kVA loads with a power draw of 1.5 kVA and operate from a conventional electrical source*. In addition, these units include a dual range kilovolt meter, triple range output current meter and a guard/ground return mode enabling the operator to measure the total current to ground or only the current flowing through the sample under test.

The PFT-103CM(F) AC hipot test set provides continuously adjustable output voltages for overvoltage withstand testing of the following:

• Switchgear
• Circuit breakers
• Reclosers
• Vacuum bottles
• Hot sticks
• Motor windings
• Other high voltage insulation requiring AC

Features:

• Continuously adjustable output voltage
• Fixed overload, factory set to 120% of rated output current
• Zero start and external interlock provision
• Secondary connected dual-range voltmeter
• Three-range current meter with isolated guard/ground return circuit
• Capacitive load compensation
• Shielded output cable
• One-piece portable design
• Automatic transit protected meters
• Rugged case with cushion grips
• Simple controls
