PFT-1003CM(F)

HVI

PFT Series – AC High Voltage Dielectric Test Set
0 – 100 kV AC Power Frequency AC Hipot





Download Catalog Watch Video

Features and Benefits

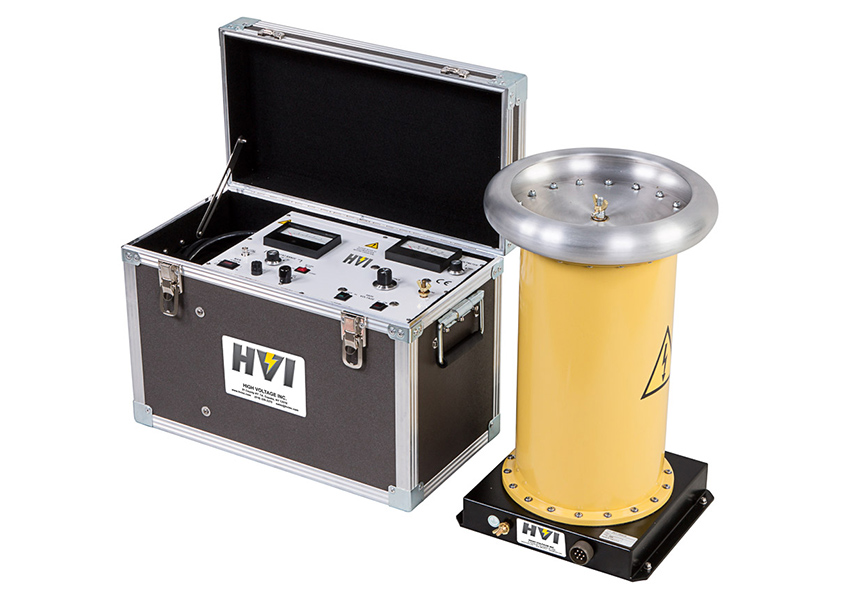

The PFT-1003CM and PFT-1003CMF are from our popular PFT Series of field portable AC hipot test sets. These hipots provide continuously adjustable AC voltage used for a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, bus duct, and any other apparatus needing an AC test voltage. The PFT Series offers the most field portable, affordable, and easiest to operate AC hipots at this voltage and power. A gapped core transformer for up to 3 kVA of output power with the draw of only 1.5 kVA so the hipot can be powered by a standard 120Vac or 230Vac input. Equipped with a two-range voltmeter, three-range current meter and guard circuit for precise leakage current measurements. For bench-top requirements see the ABT Series. Testing loads that require higher power, see our ALT, FPA, HPA and PAR lines of AC dielectric test sets.

  • Convenient two-piece field portable design

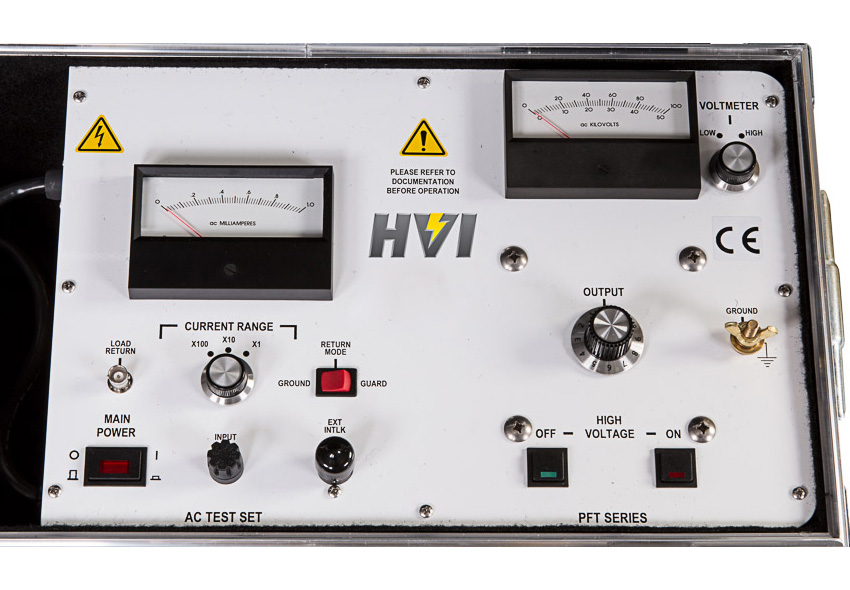

  • Secondary connected 2 Range Voltmeter: 0 – 50 / 100 kV AC
  • 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
  • Fixed overload set to 120% of variable transformer rated output current
  • Transit protected meters prevent meter damage between test sites
  • Guard/Ground circuit for accurate leakage current measurement
  • Gapped core transformer design for capacitive load compensation
  • Zero Start and External safety Interlock provisions



Optional Accessories

Hand & Foot Safety Switches

  • PN 90-405
  • PN 90-410

Safety Ground Sticks

  • 10 inch PN 88-113
  • 14 inch PN 88-150

Reusable Shipping Cases

  • HV Section PN 32-0332
  • Control Section PN 32-0333



Optional Upgrades

Digital Metering – Add Suffix “D” · Fault Burn Reactor – PN PFT-BC
