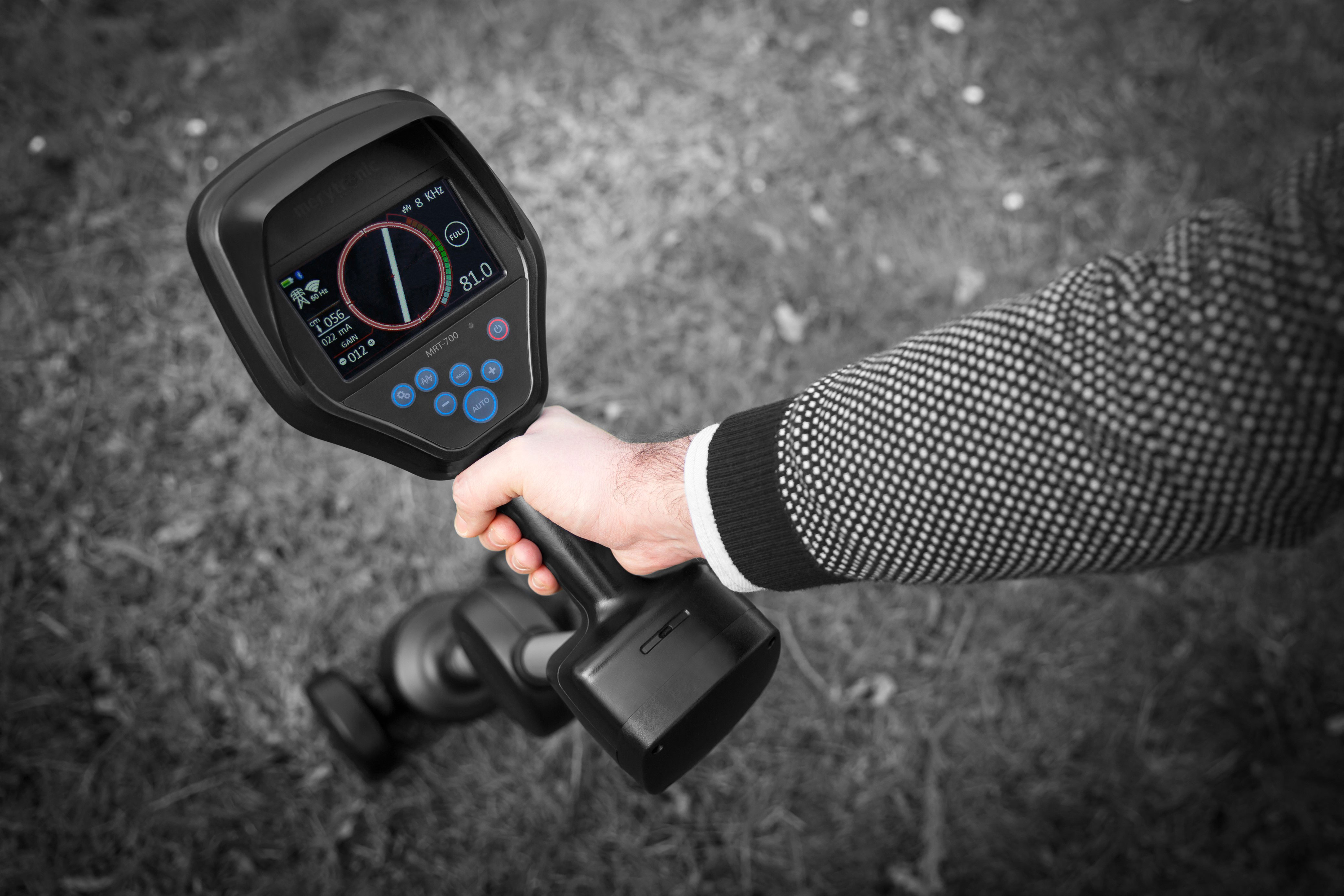

Locate Underground Power Cables and Pipes quickly and accurately. Energized and de-energized MV and LV Cables.

Main Features

• 10W Output power selectable by user
• 7 Sensors
• High precision (less than 10 cm in three axes)
• Lengths over 10 kms
• More than 5 meters deep
• Target line with direction change orientation
• 3 active frequencies (640Hz - 8KHz - 32KHz
• 50/60Hz passive frequency (no transmitter needed)
• 15-27KHz Radio band passive frequencies
• 8 - 32KHz passive sonde frequencies
• Current direction
• Automatic depth and current measurement
• Bluetooth connection with compatible external GPS devices
• Built-in GPS with accuracy <2 m
• Operation modes (Full - Max - Peak - Null)
• Operating timer longer than 10h
• Operating Temperature -20ºC / +55ºC
• IP54 protection
• Weight 1,5 kgs
