High Tech Voltage Detector Mod. VTA

Sofamel

IEC high tech voltage detector - High Voltage / Optical & Acoustic

Download Catalog

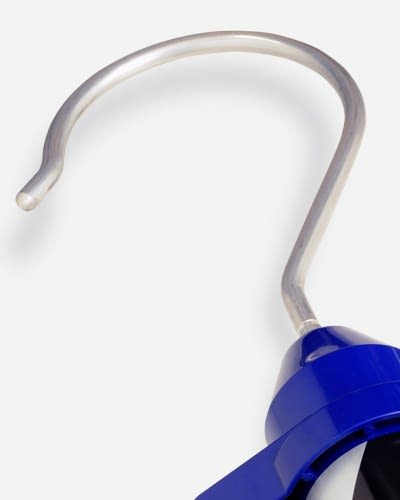

Electronic voltage detector by micro controller and direct contact detection. New advanced technology acquisition by pulse of light that guarantees a perfect and safe indication even in conflicting electric field environments.
Work temperature range: from -25°C to +55°C.
Self-checking system for its complete circuit by pressing test button. Self-ignition when voltage presence.
Auto turn-off into sleep mode after two minutes of voltage absence. In this mode consumption is less than 1µA.
Voltage presence is indicated by high luminosity red LED and high acoustic pressure buzzer. Voltage absence is indicated by high luminosity green LED.
Power supply 9V alkaline battery, type 6LR61 (included).
Indoor and outdoor use by appropiate insulating pole to the detector voltage range.
Connection to the pole by Universal head. Supplied with metallic box.
* According to IEC 61243:2003+A1:2009 and UNE-EN 61243-1:2006+A1:2011 standards

Mod. VTA-63/150-U*

  • Rated voltage from: 63 to 150 kV
  • Frequency: 50 / 60 Hz

Mod. VTA-66/220-U*

  • Rated voltage from: 66 to 220 kV
  • Frequency: 50 / 60 Hz

Mod. VTA-90/225-U*

  • Rated voltage from: 90 to 225 kV
  • Frequency: 50 / 60 Hz

Mod. VTA-150/420-U*

  • Rated voltage from: 150 to 420 kV
  • Frequency: 50 / 60 Hz

Mod. VTA-45/420-U

  • Rated voltage from: 45 to 420 kV
  • Frequency: 50 / 60 Hz

Mod. VTA-225/420-U

  • Rated voltage from: 225 to 420 kV
  • Frequency: 50 / 60 Hz
